Installation

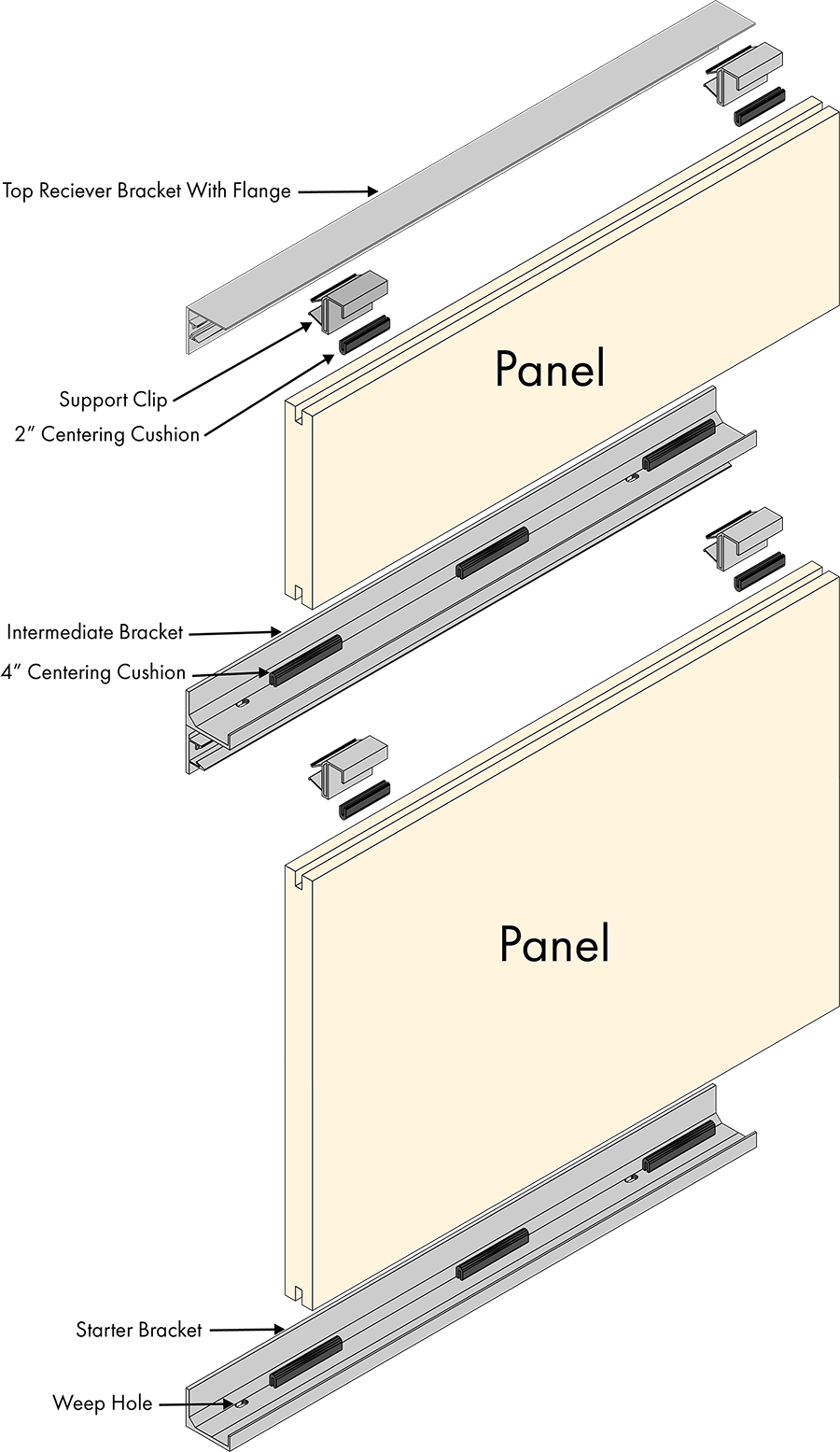

Exploded view: 8x24 and 16x24 units

The patent-pending Fast Track Stone system consists of:

extruded aluminum support channels
flexible centering cushions
aluminum support clips
screws
shims
backer rod
sealant
Installation is, literally, a snap.

Once the starter channel is installed, transition channels are secured from bottom to top - ending with a top receiver channel with an integrated drip edge.

The stone units themselves slide or click into place for a sturdy, secure fit.

To complete the installation, backer rod is set in each joint and sealed with silicone. Sealants are available in a variety of attractive colors.
